Lightenting Audio

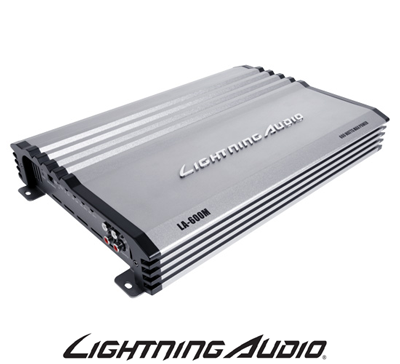

LA-600M

600 Watt Mono Amplifier

The perfect amp for any setup! The Lightning Audio 600M is a 600 Watt mono amplifier versatile enough to run dedicated midrange speakers or subwoofers. The amplifier features a Bass Boost and a flexible crossover that can be used in high, low and bandbass modes. Use dedicated amps on individual midrange or components, or use on subwoofers with the subsonic filter to minimize inaudible bass transients. Best of all, RCA outputs allow daisy-chaining more amplifiers.

Features & Specifications

• Pass-Thru Outputs
• Adjustble 12dB/octave Crossover
• Subsonic Filter
• Built-In Fusing
• Remote Bass Control

• Number of Channels: 1
• Max Power: 400 Watts x 1 @ 4-Ohms 600 Watts x 1 @ 2-Ohms
• Bridgeable: No
• Crossover Controls: 12dB/octave LP/BP-FULL-HP 40Hz to 150Hz Subsonic: 15Hz to 55Hz
• Tone Controls: Bass Boost: 0dB to +12dB @ 45Hz
• Signal Input: Low-Level: (2) RCA
• Input Level: 200mV to 5V
• Signal Output: (2) RCA
• Power Input Connector: Block connector w/ set screw
• Power Wire Gauge: 8 AWG
• Speaker Output Connector: Block connector w/ set screw
• Speaker Wire Gauge: 8 AWG
• Heat Sink Type: Extruded aluminum
• Cooling: Convection
• Remote Control Bass Boost (included) w/ integral Power LED & Protect LED
• Visual Indicators: Power Protect
• Circuit Topology Class: Class A/B
• Frequency Response: 20Hz to 20kHz
• Shipping Weight 8 Lbs. (3.6 Kg.)
• Dimensions: L9.8" x W9.4" x H2.3" (24.89cm x 23.876cm x 5.8cm)
